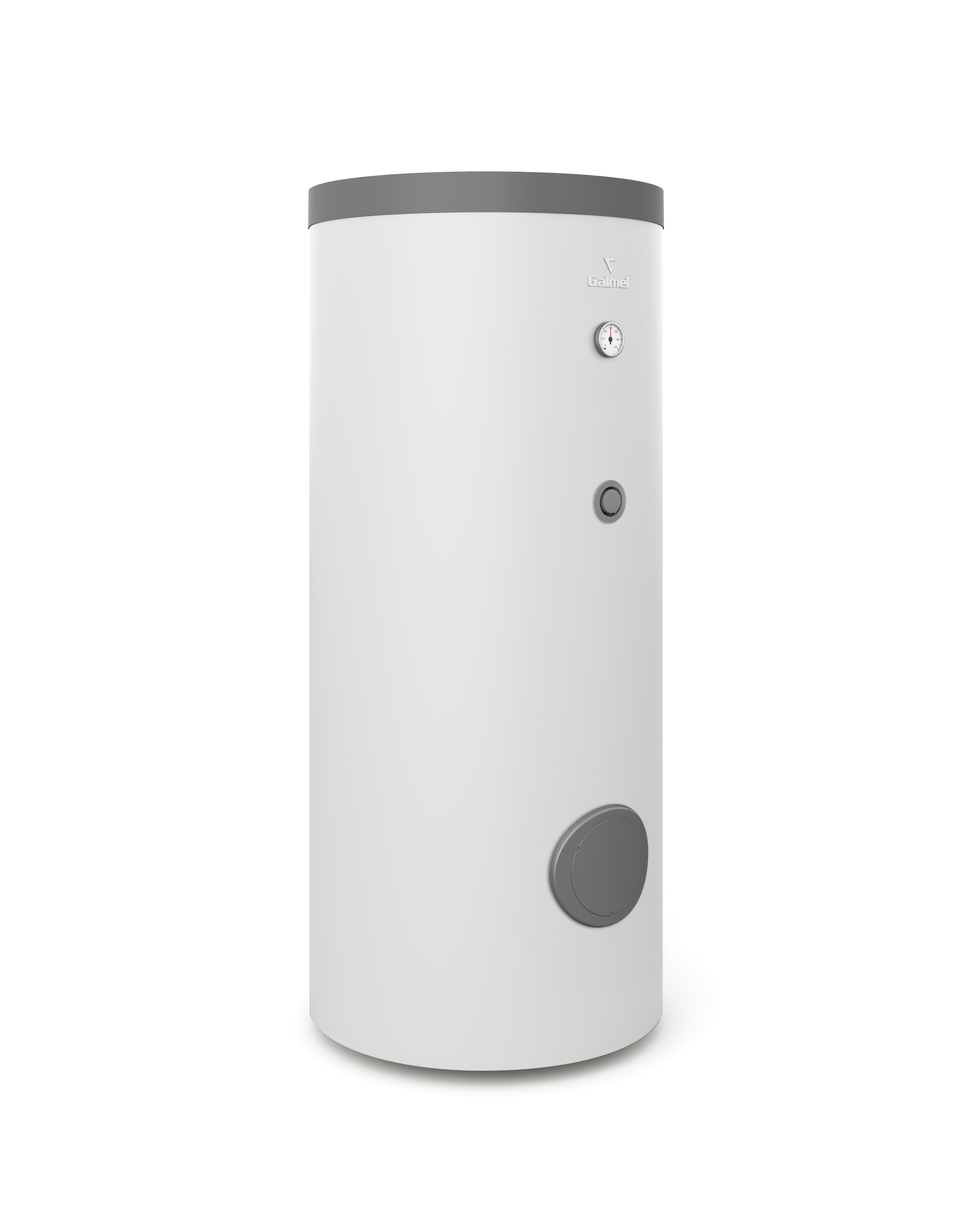

SGW(S) MAXI

Domestic hot water tank with a high-capacity heat exchanger for heat pumps, including insulation
Available capacities from 700 to 1,000 liters, with a heat exchanger surface area of up to 12 m²
Fast water heating - spiral high-capacity heat exchanger
Designed for both inverter and on/off heat pumps
High-quality ceramic enamel EXTRA GLASS®
Additional protection with a magnesium anode
Maintenance-free titanium anode – optional
Option to install an electric heating element – optional
Thermometer included as standard

	SGW(S) MAXI
	700/1	1000/1	800/1-9,0	1000/1-12,0
Net volume (l)	657	973	880	985
ErP – energy efficiency class	C	C	C	C
Maximum operating pressure – tank / heat exchanger (MPa)	1,0/1,6	1,0/1,6	1,0/1,6	1,0/1,6
Maximum operating temperature – tank / heat exchanger (°C)	95/110	95/110	95/110	95/110
Maximum operating temperature – heat exchanger (°C)	110	110	110	110
Heat exchanger surface area (m²)	6,5	6,5	9,0	12,0
Heat exchanger volume (l)	45,4	45,4	76,0	101,0
Heat exchanger output (80/10/45 °C) (kW)	138	138	182	240
Heat exchanger output (80/10/60 °C) (kW)	108	108	-	-
Heat exchanger capacity (80/10/60 °C) (l/h)	1894	1886	1894	1894
Heat exchanger output for heat pumps (50/10/45 °C) (kW)	40	40	62	80
Required heating water flow rate (m³/h)	3,0	3,0	3,0	3,0
d – diameter without insulation (mm)	700	900	900	900
D – overall diameter including insulation (mm)	855	1060	1060	1060
L – total height (mm)	2050	2020	1935	2135
Weight of empty tank including insulation (kg)	307	398	454	521
